Drawn Stainless Single Bowl Undermount Sink (18 Gauge)

  • Sizes Bar sinks 15×12 and 18″ round; six single bowls from 23″ to 31½″: D-shape, rectangular, octagon and keyhole
  • Build 18-gauge 304 stainless steel, fully insulated
  • Grids & strainer Sold separately. See the Matching Grids & Accessories tab below ↓

List Price: Price range: $145 through $685

Great value in 18-gauge steel. Two bar sinks and six single-bowl shapes, from compact D-shape and rectangular bowls to large octagon and keyhole designs.

  • 18-Gauge 304 Stainless

    Durable 304 stainless steel at a builder-friendly price.

  • Bar Sinks and Six Single-Bowl Shapes

    A 15″ × 12¾″ and an 18″ round bar sink, plus D-shape, 8″ and 9″ deep rectangles, a 27″ bowl, a large octagon (hexagonal) bowl, and a large keyhole bowl with a left drain.

  • Quiet and Insulated

    Fully undercoated with foam insulation over large sound-deadening pads.

  • Template and Hardware Included

    Every sink comes with a cut-out template and mounting hardware. We recommend your fabricator checks the template for accuracy.

  • Matching Grids Available

    Grids for most models and ST-1 or ST-2 strainers, sold separately.

  • 15″ to 31½″ Wide

    Sizes for wet bars, laundry rooms, small kitchens and full-size kitchens alike.

18-gauge sizes at a glance

Model Outside (W × D × H) Inside bowl Min. cabinet List price
B1512
Bar sink, ¾″ radius
15″ × 12¾″ × 7″ 13″ × 10¾″ × 7″ 18″ $145
BR18
Round bar sink
18″ × 18″ × 8″ 16″ diameter × 8″ 21″ $225

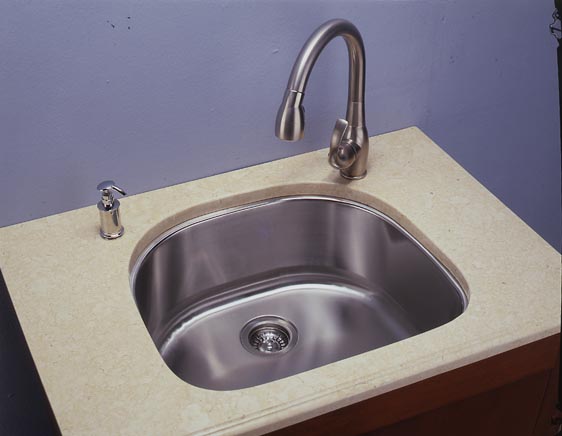

S-1

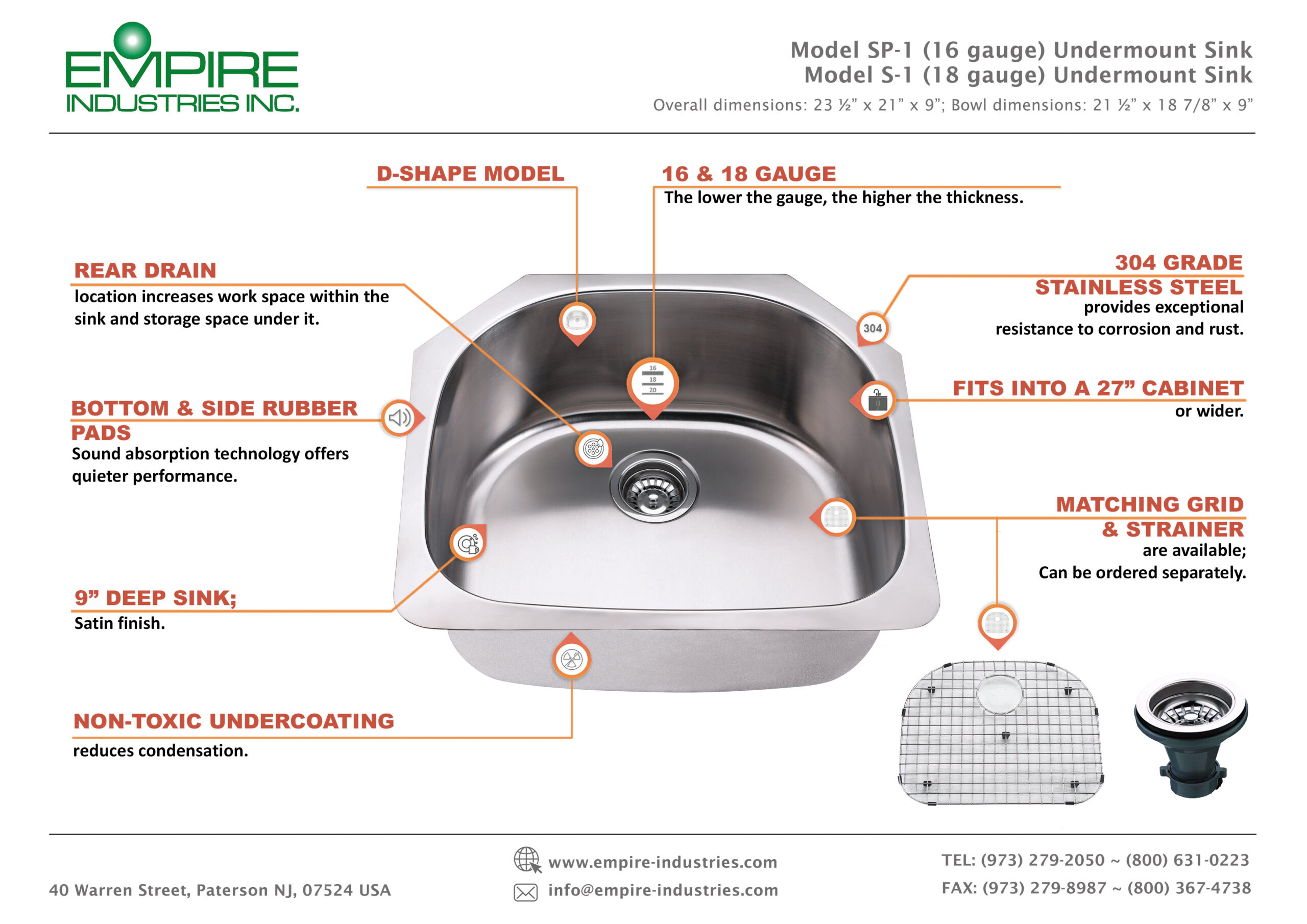

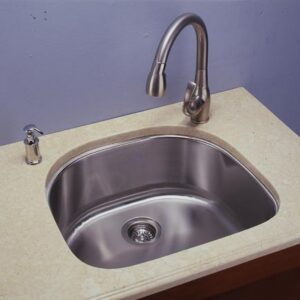

Single bowl, D-shape
23½″ × 21″ × 9″ 21½″ × 19″ × 9″ 26½″ $290
S-2

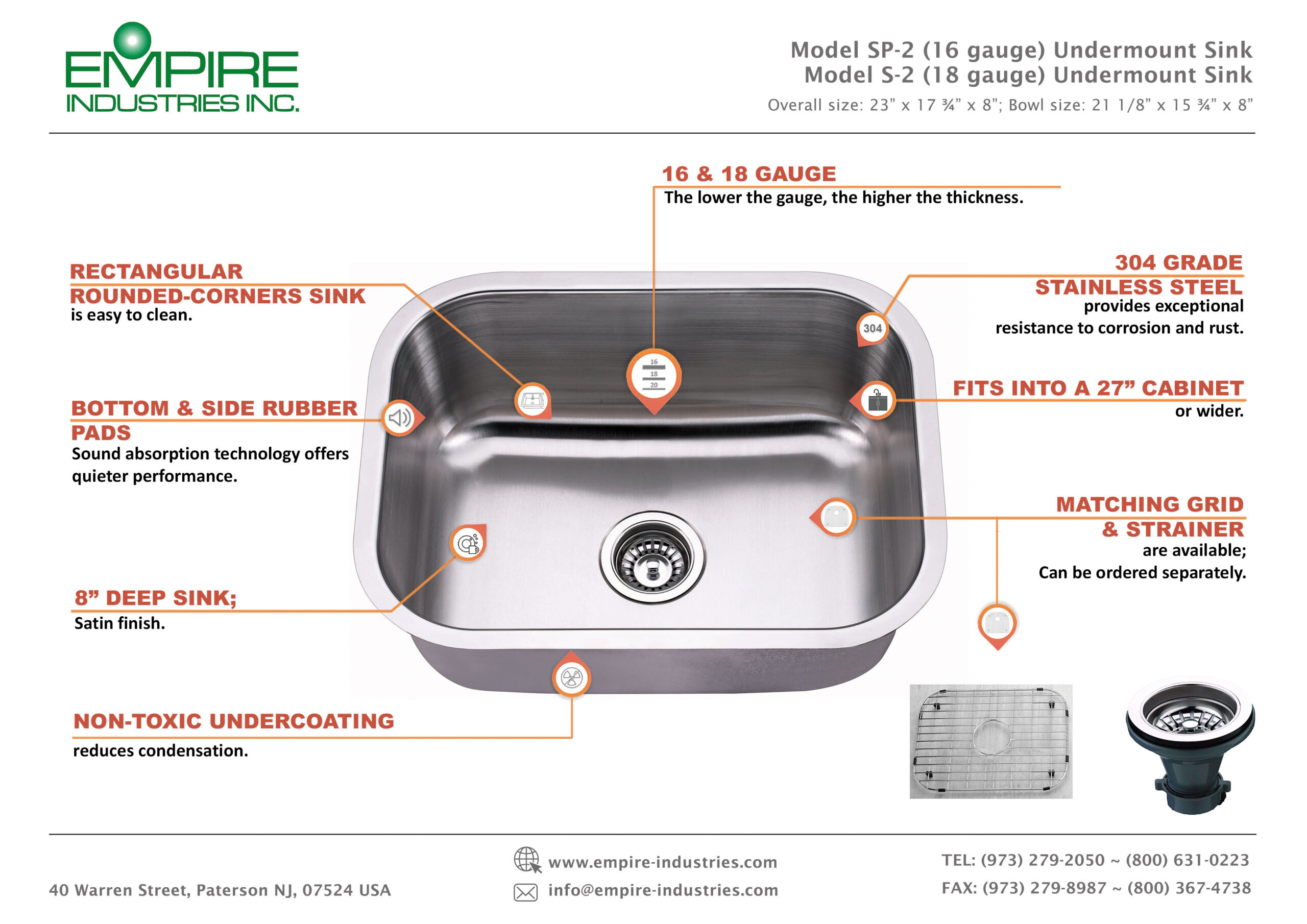

Single bowl, 8″ deep
23″ × 17¾″ × 8″ 21″ × 15¾″ × 8″ 26″ $280
S-3
Single bowl, 9″ deep
23″ × 17¾″ × 9″ 21″ × 15¾″ × 9″ 26″ $290
S-16

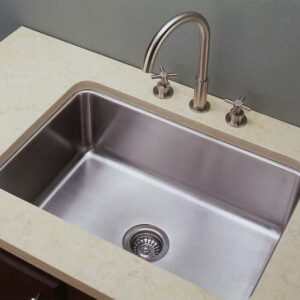

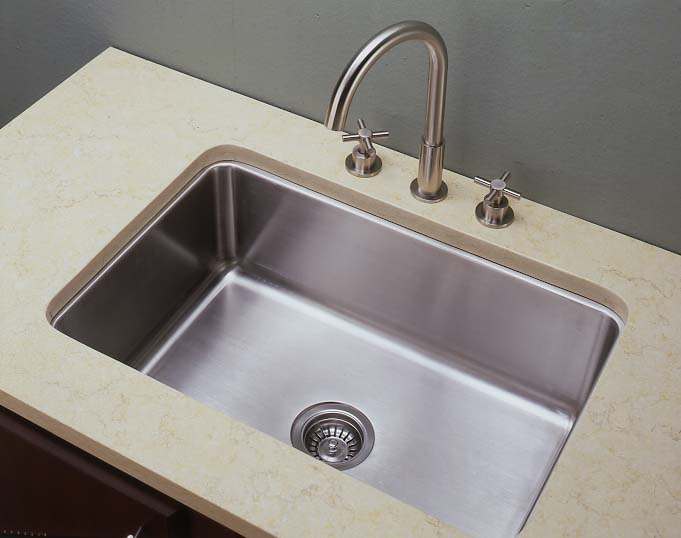

Single bowl
27″ × 18″ × 10″ 25″ × 16″ × 10″ 30″ $600

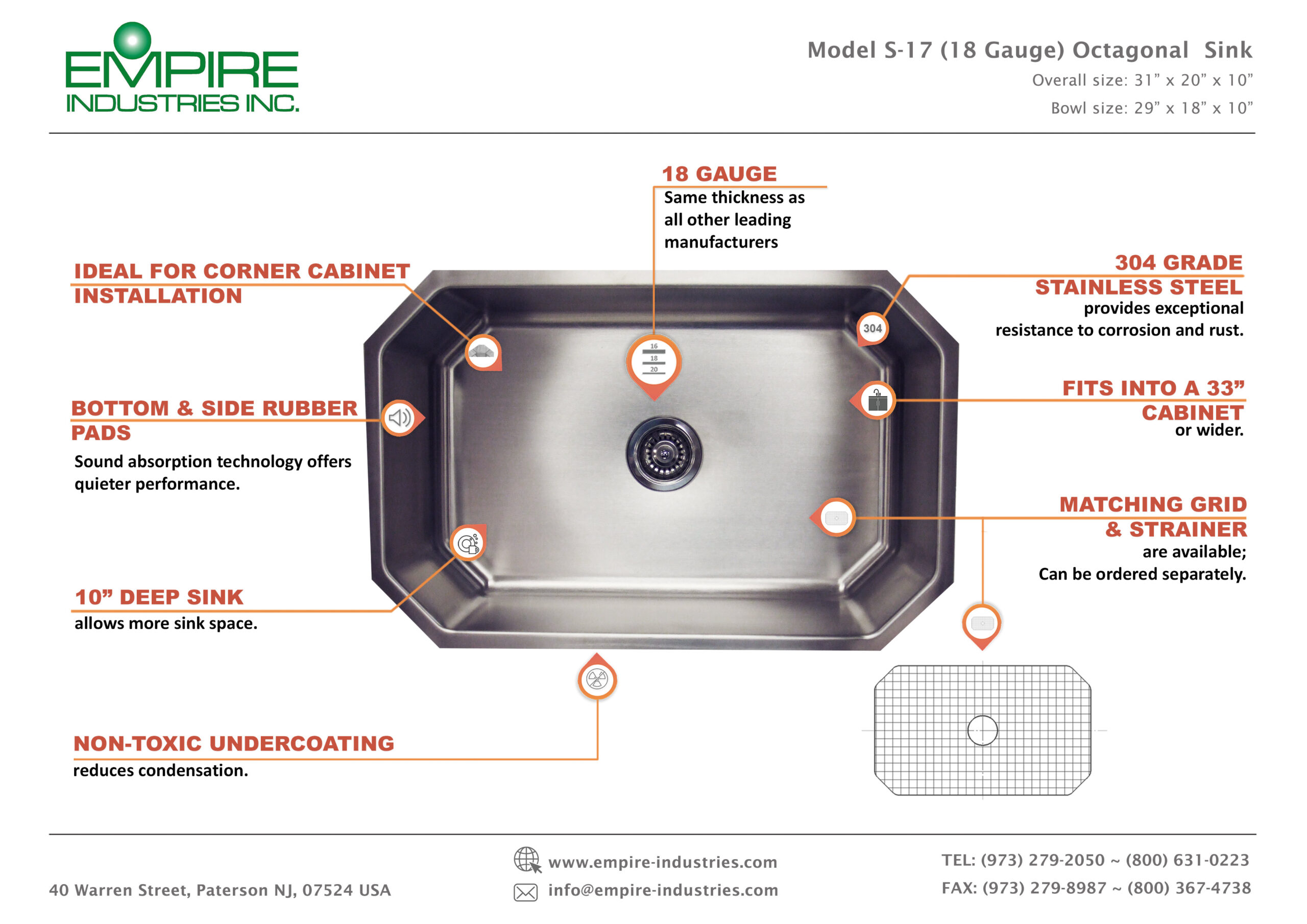

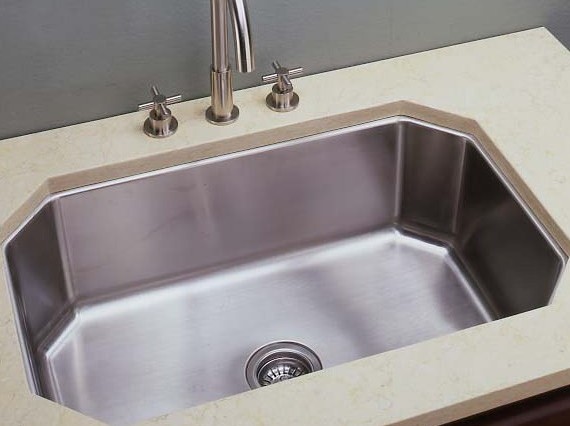

S-17
Single bowl, octagon
31″ × 20″ × 10″ 29″ × 18″ × 10″ 34″ $685
S-18
Single bowl, keyhole, left drain
31½″ × 20½″ × 10″ 29½″ × 18½″ × 10″ 34½″ $685

Min. cabinet is the overall sink width plus 3″, which leaves room for the mounting clips that hold the sink rim to the countertop. Many sinks can also go into a narrower cabinet, resting on the side panels or installed without side clips. Please check with your installer or fabricator before ordering.

Matching grids

Stainless steel bottom grids protect the bowl from scratches. Sold separately; order one grid per bowl.

18-gauge sink Grid List price
B1512 (bar sink, ¾″ radius) Not available —
BR18 (round bar sink) Not available —
S-1 (single bowl, D-shape) G1 $135
S-2 (single bowl, 8″ deep) G2 $135
S-3 (single bowl, 9″ deep) G2 $135
S-16 (single bowl) Not available —
S-17 (single bowl, octagon) G17 $215
S-18 (single bowl, keyhole, left drain) G18 $215

Strainer

Item Code List price and details
Basket strainer ST-1 $35 each. Polished stainless steel. Order one per bowl (two for a double bowl).
Deep Basket strainer ST-2 $45 each. Polished stainless steel. Deep Strainer with cover.

Dimension drawings

Model Sink Drawing
B1512 15″ bar sink, ¾″ radius View drawing ↗
BR18 18″ round bar sink View drawing ↗
S-1 23½″ single bowl, D-shape View drawing ↗
S-2 23″ single bowl, 8″ deep View drawing ↗
S-3 23″ single bowl, 9″ deep View drawing ↗
S-16 27″ single bowl View drawing ↗
S-17 31″ single bowl, octagon View drawing ↗
S-18 31½″ single bowl, keyhole, left drain View drawing ↗

Request a quote

Tell us the model numbers and quantities you need (for example ES3219 + G3219 grid + ST-1 strainer) and we will get back to you with pricing. Prefer to buy locally? Find a dealer near you.
