Yorkshire Fireclay Undermount Sink

  • Sizes Eight sizes and shapes: square and round bar sinks, single bowls 24″ to 32″, and two double bowls
  • Build Solid fireclay, 1″ thick, with a high-gloss white glaze
  • Grids & strainer Sold separately. See the Matching Grids & Accessories tab below ↓

List Price: Price range: $735 through $1,075

Our full line of fireclay undermounts. From compact bar sinks to two double-bowl designs, every Yorkshire undermount is pressure cast from solid fireclay with a gleaming high-gloss white glaze.

  • Eight Sizes and Shapes

    Square and round bar sinks, single bowls from 24″ to 32″, and D-shape and square double bowls.

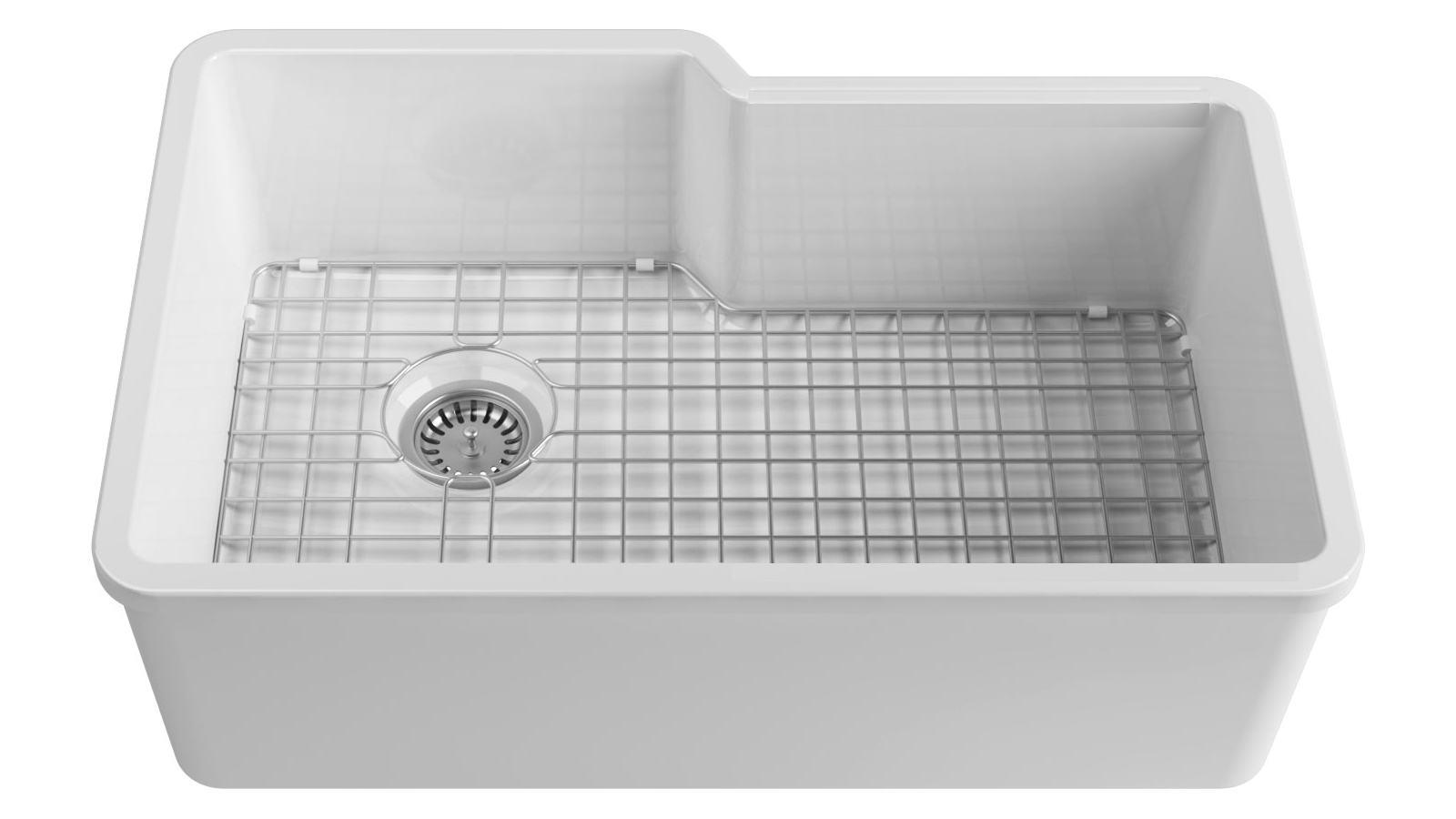

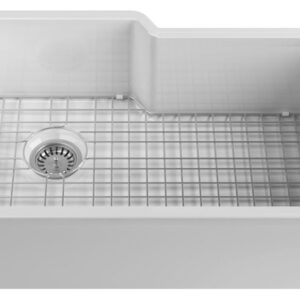

  • Exclusive YU31 Design

    Our exclusive 31″ single bowl with a left drain leaves more open space in the bowl.

  • Solid Fireclay, 1″ Thick

    Pressure cast and finished in a high-gloss white glaze that resists chips, scratches and stains.

  • One of a Kind, Templated on Site

    Every sink is fired in a long kiln at 2,300°F, so no two come out exactly alike. That is why we never ship a template: your fabricator templates the actual sink on site, for a fit no paper template could match.

  • Solid Wood Bracing, Never Clips

    Solid fireclay is far too substantial for clips. Each sink is set on solid wood bracing inside the cabinet, for a rock-solid installation that lasts.

  • Matching Grids Available

    Polished stainless steel grids and the ST-1L strainer are sold separately.

Yorkshire undermount sizes at a glance

Model Outside (W × D × H) Inside bowl Min. cabinet List price

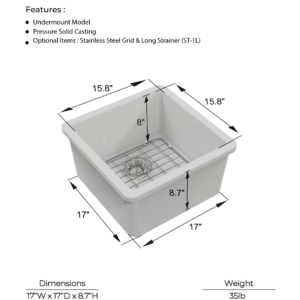

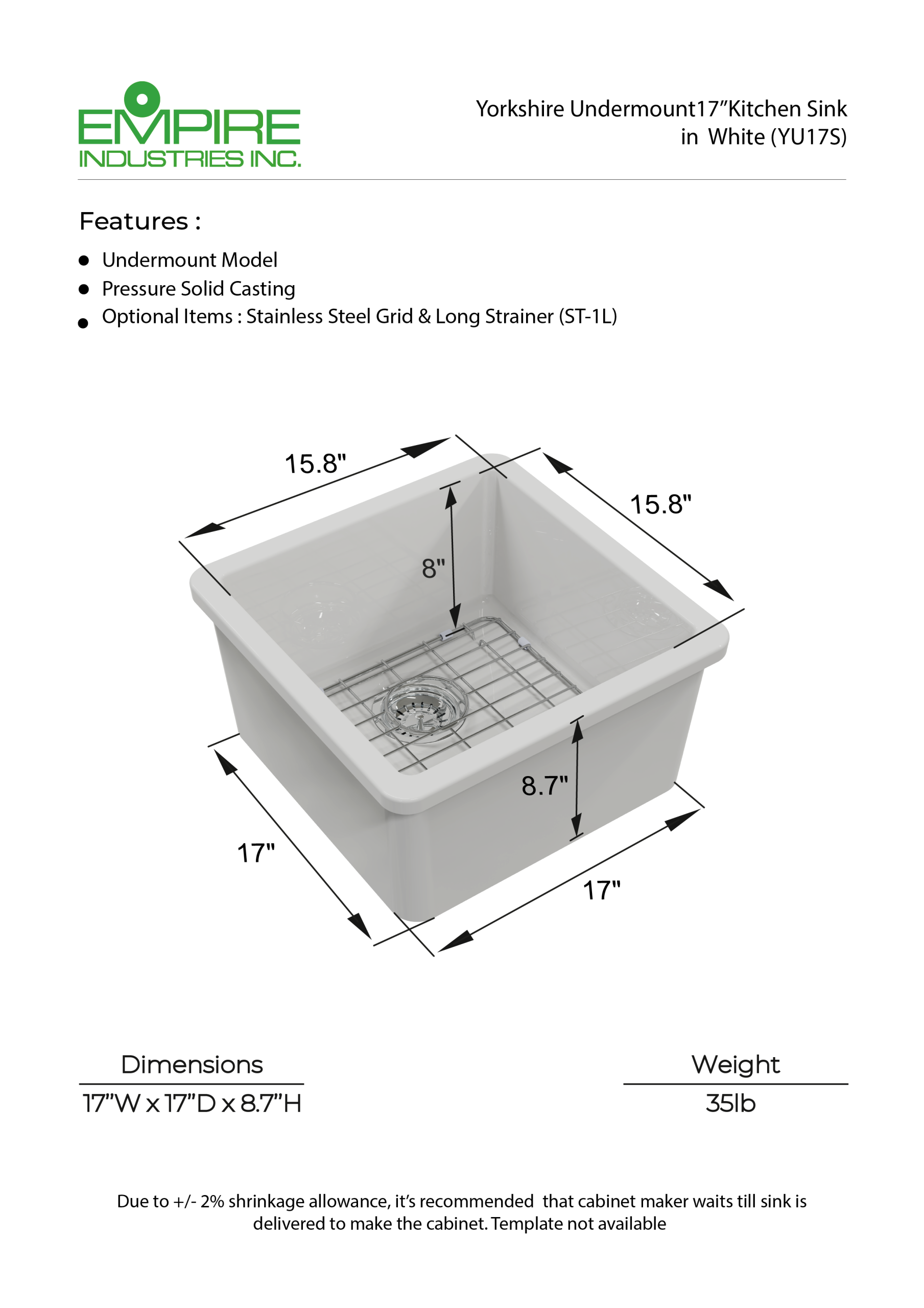

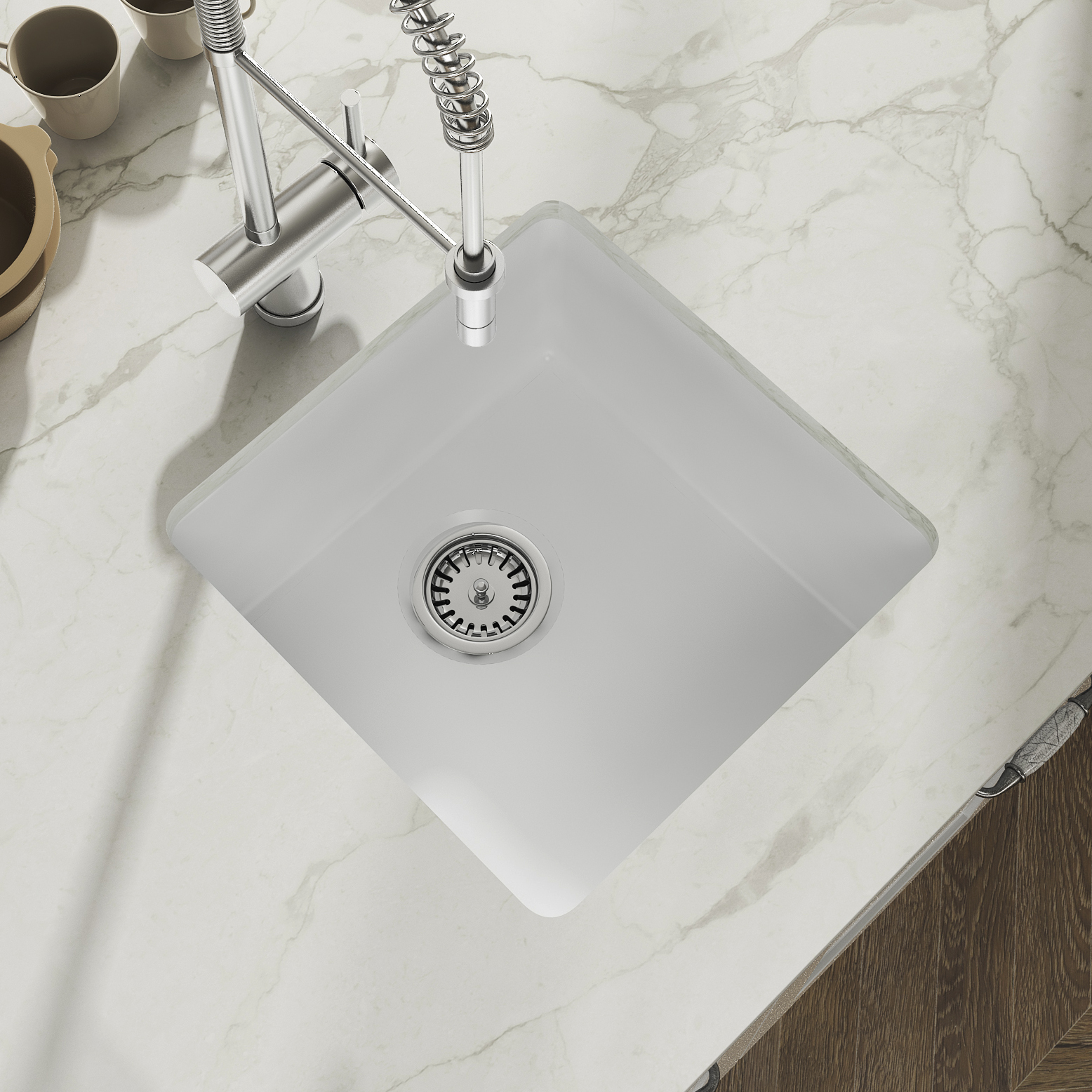

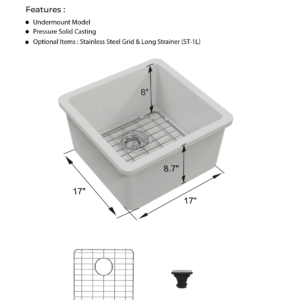

YU17S
Square bar sink
17″ × 17″ × 8½″ 15″ × 15″ × 8″ 20″ $765

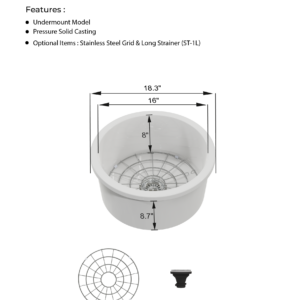

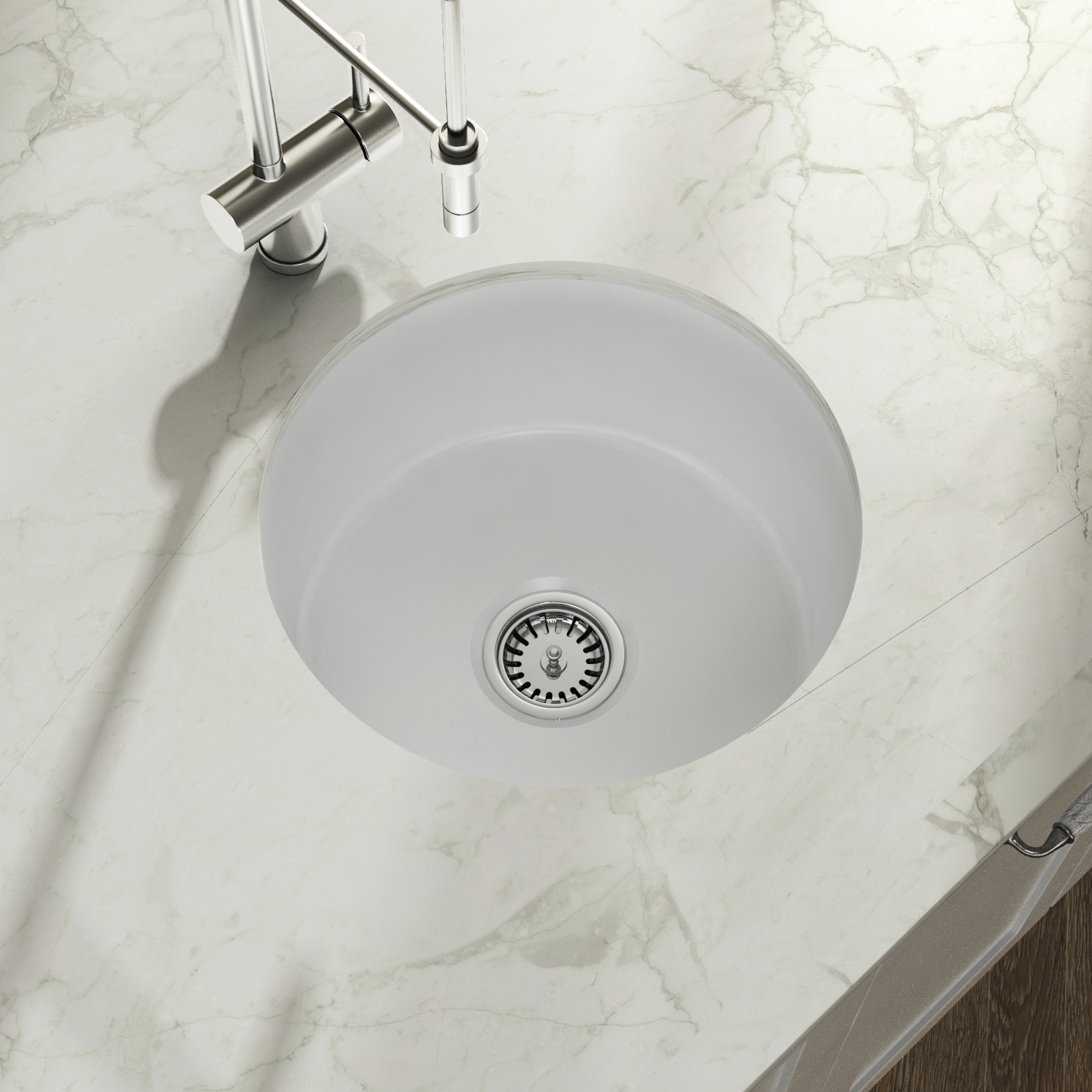

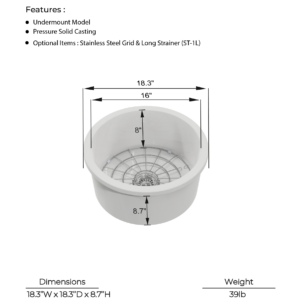

YU18R
Round bar sink
18″ × 18″ × 8½″ 16″ × 16″ × 8″ 21″ $735

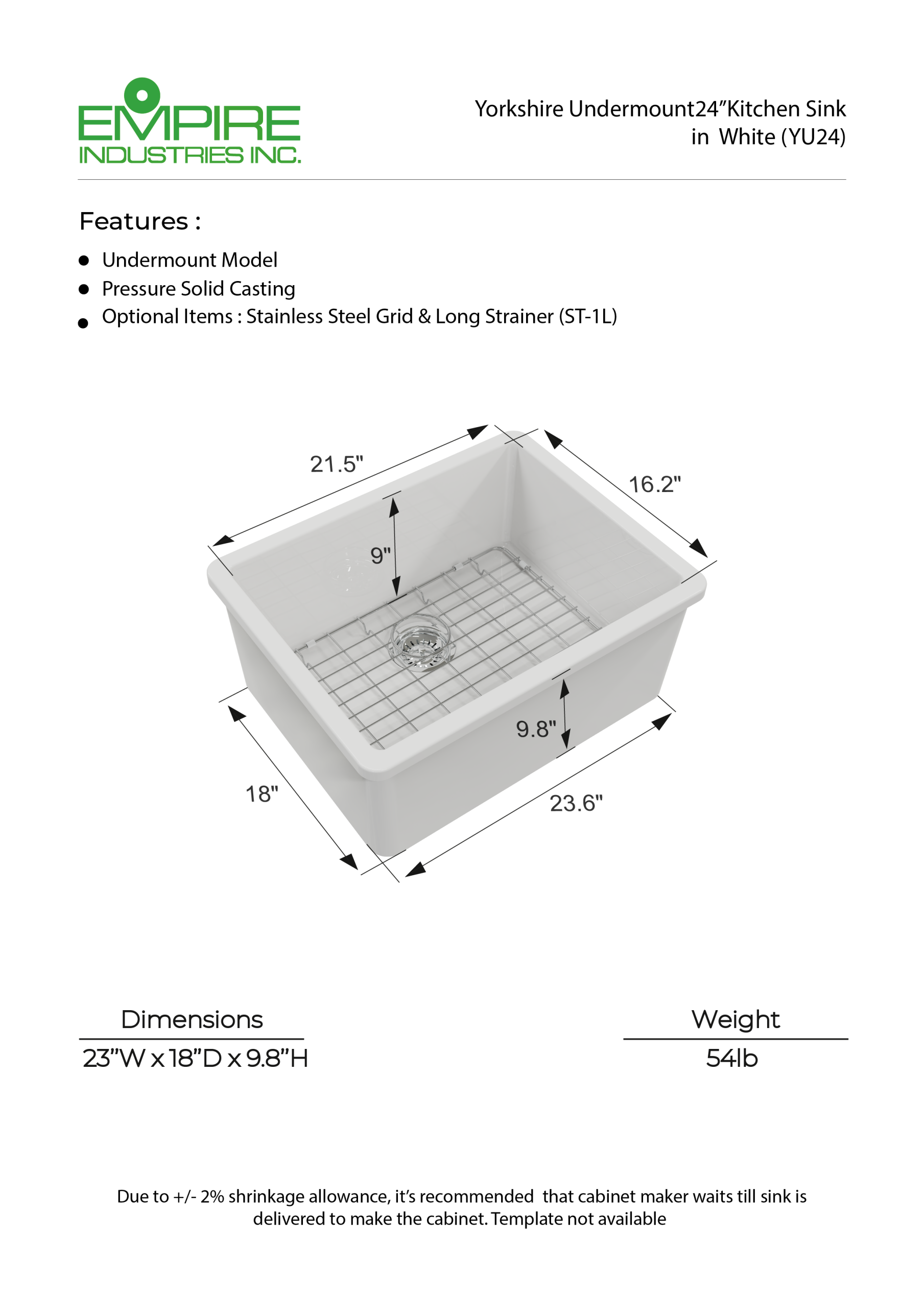

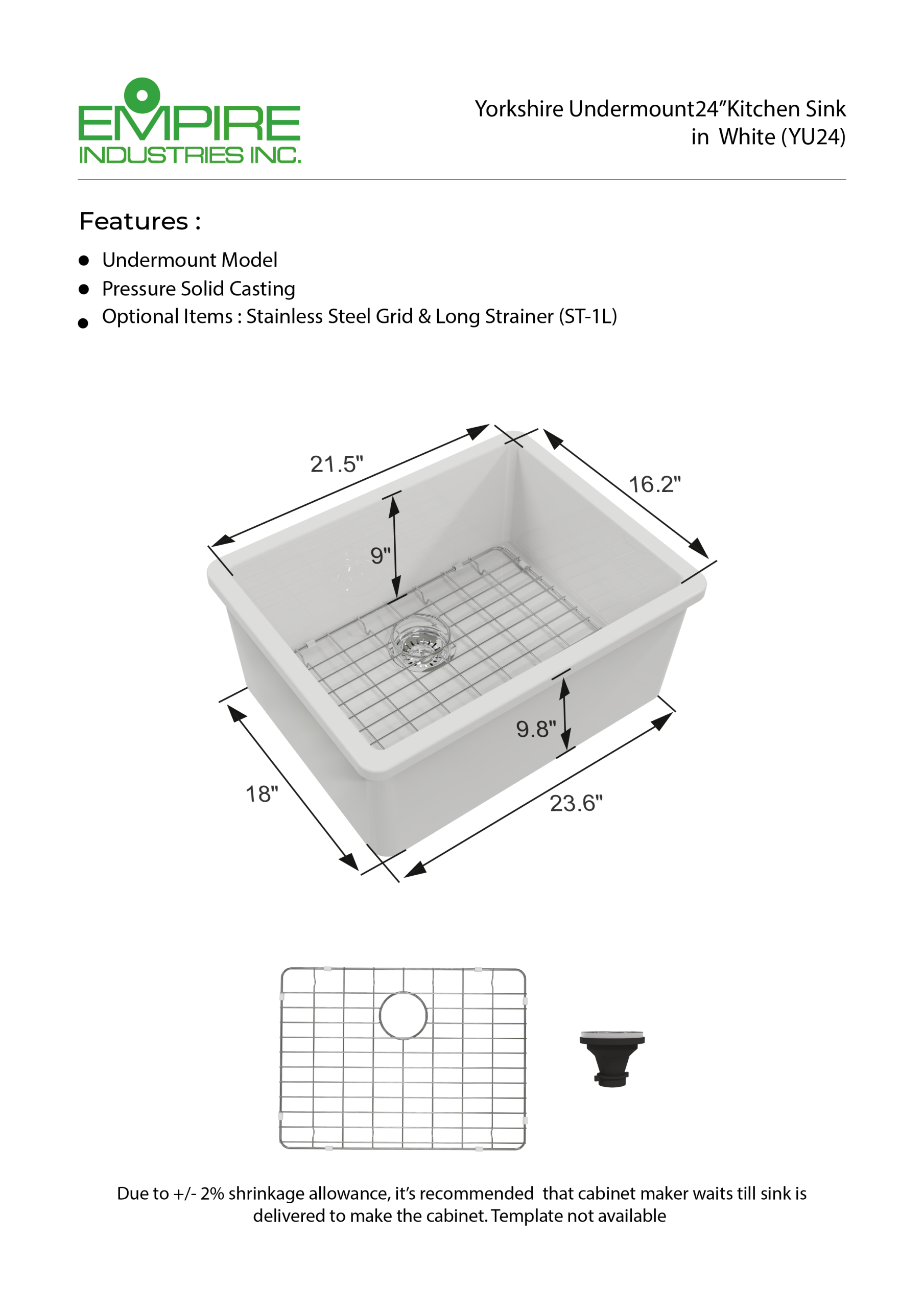

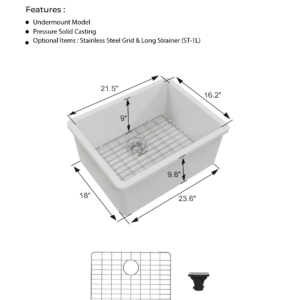

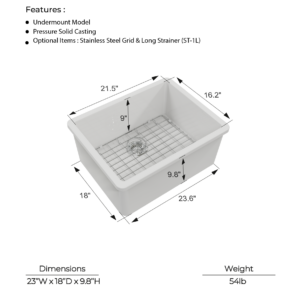

YU24
Single bowl
24″ × 18″ × 10″ 22″ × 16″ × 9″ 27″ $895

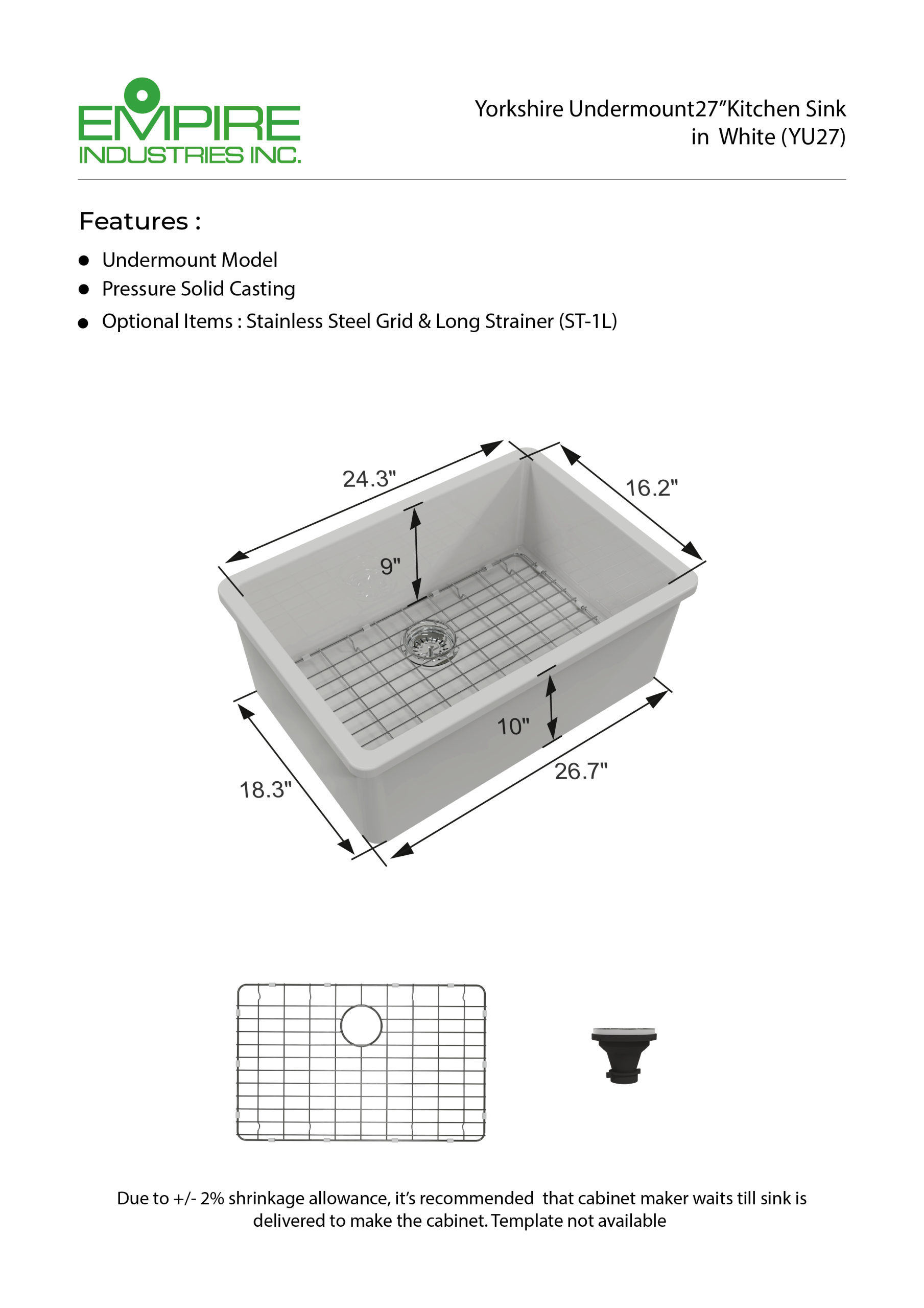

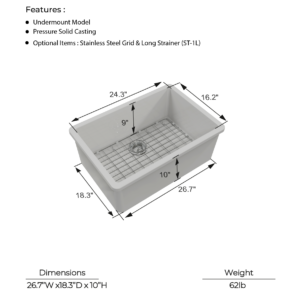

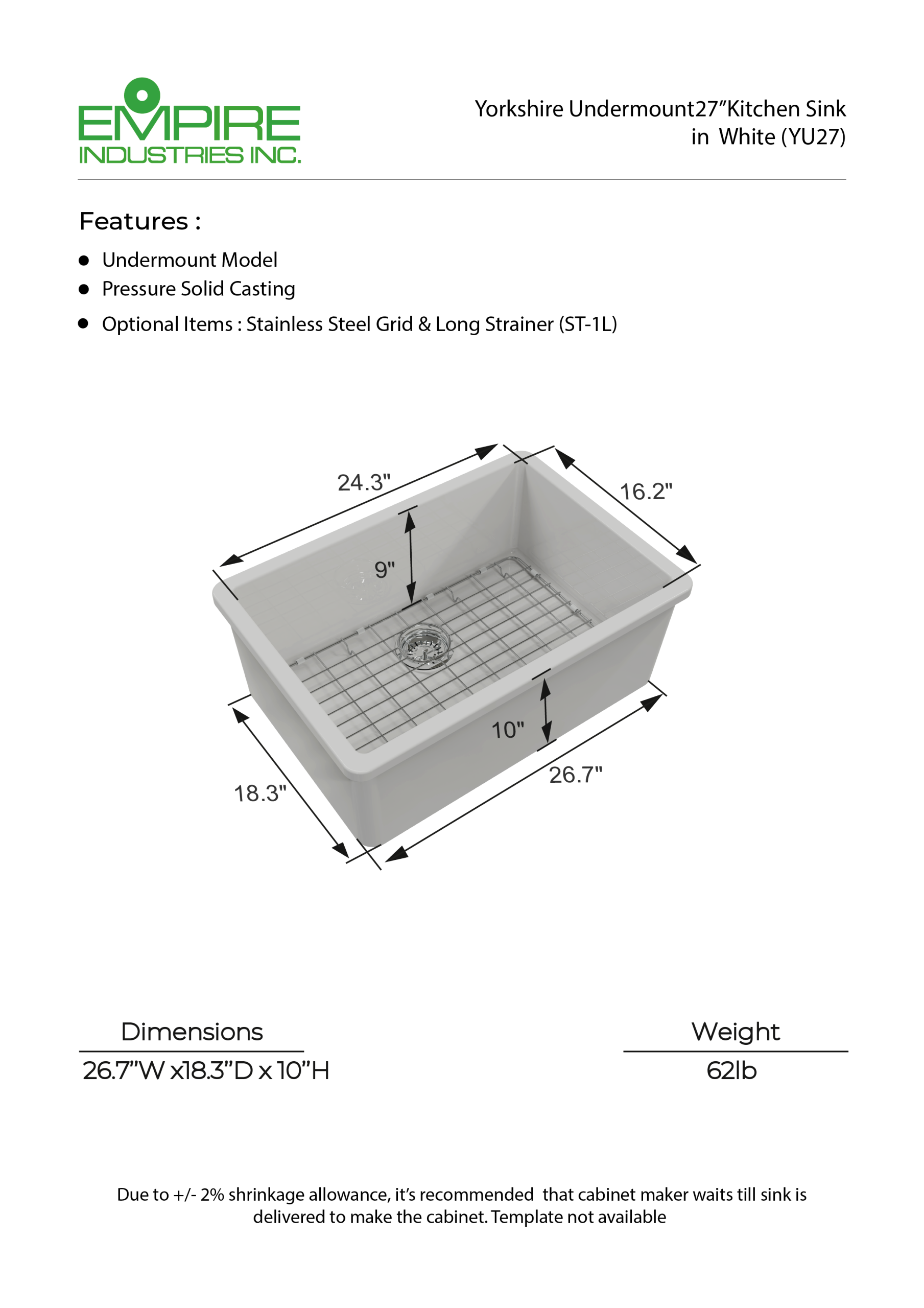

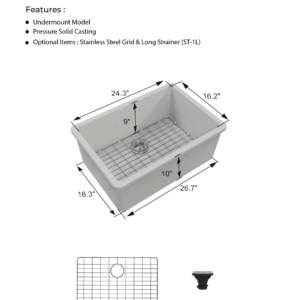

YU27
Single bowl
27″ × 18″ × 10″ 25″ × 16″ × 9″ 30″ $925

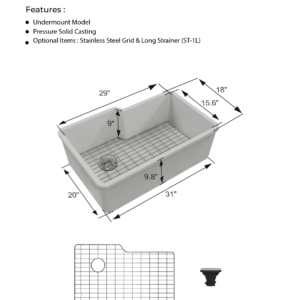

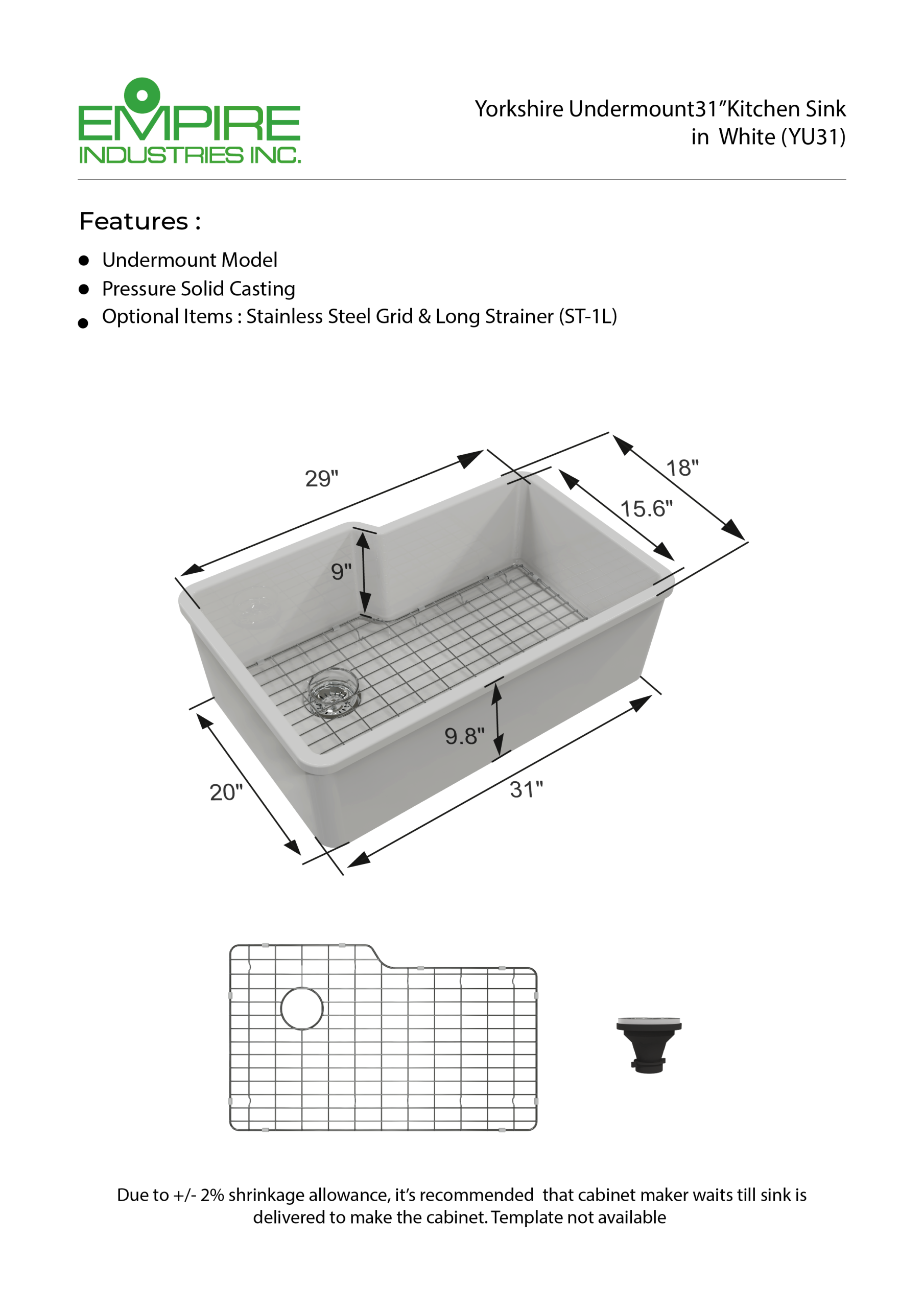

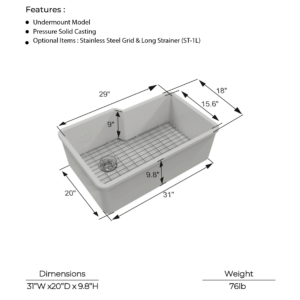

YU31
Single bowl, left drain
31¼″ × 20¼″ × 10″ 29⅛″ × 18⅛″ × 9″ 34¼″ $985

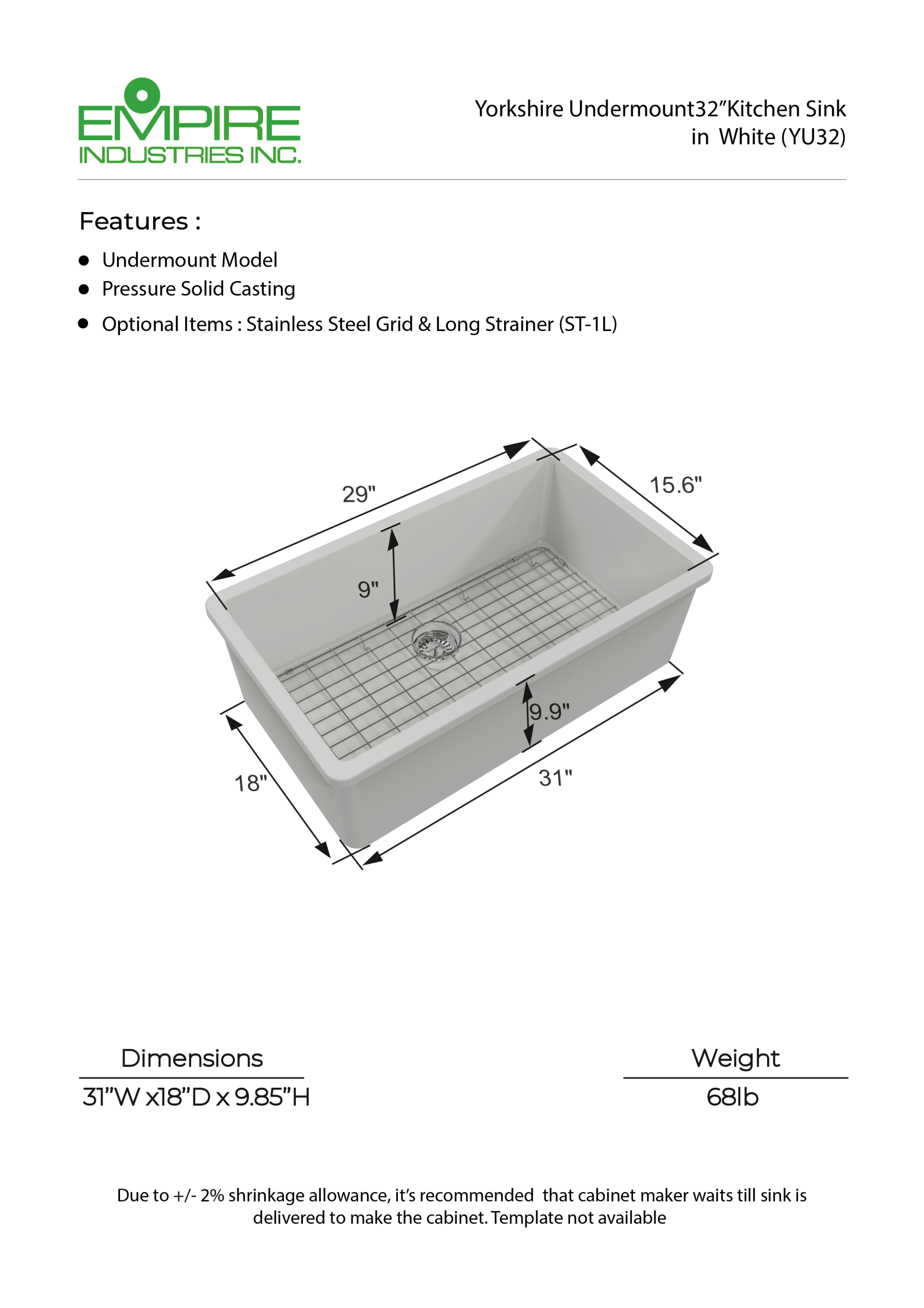

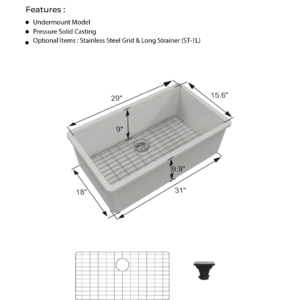

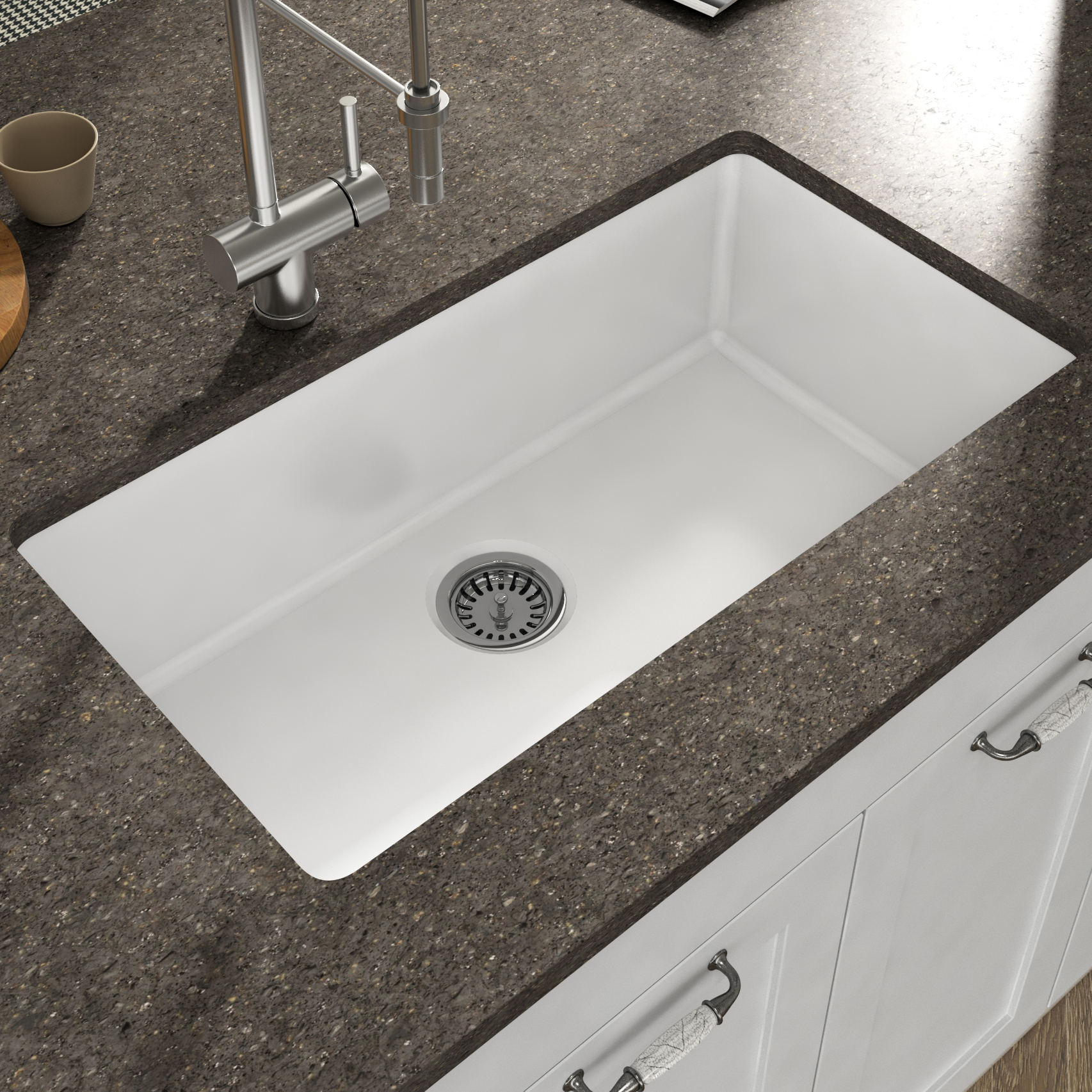

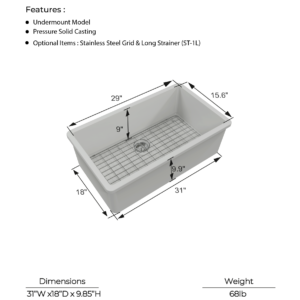

YU32S
Single bowl
31½″ × 18″ × 10″ 29″ × 16″ × 9″ 34½″ $960

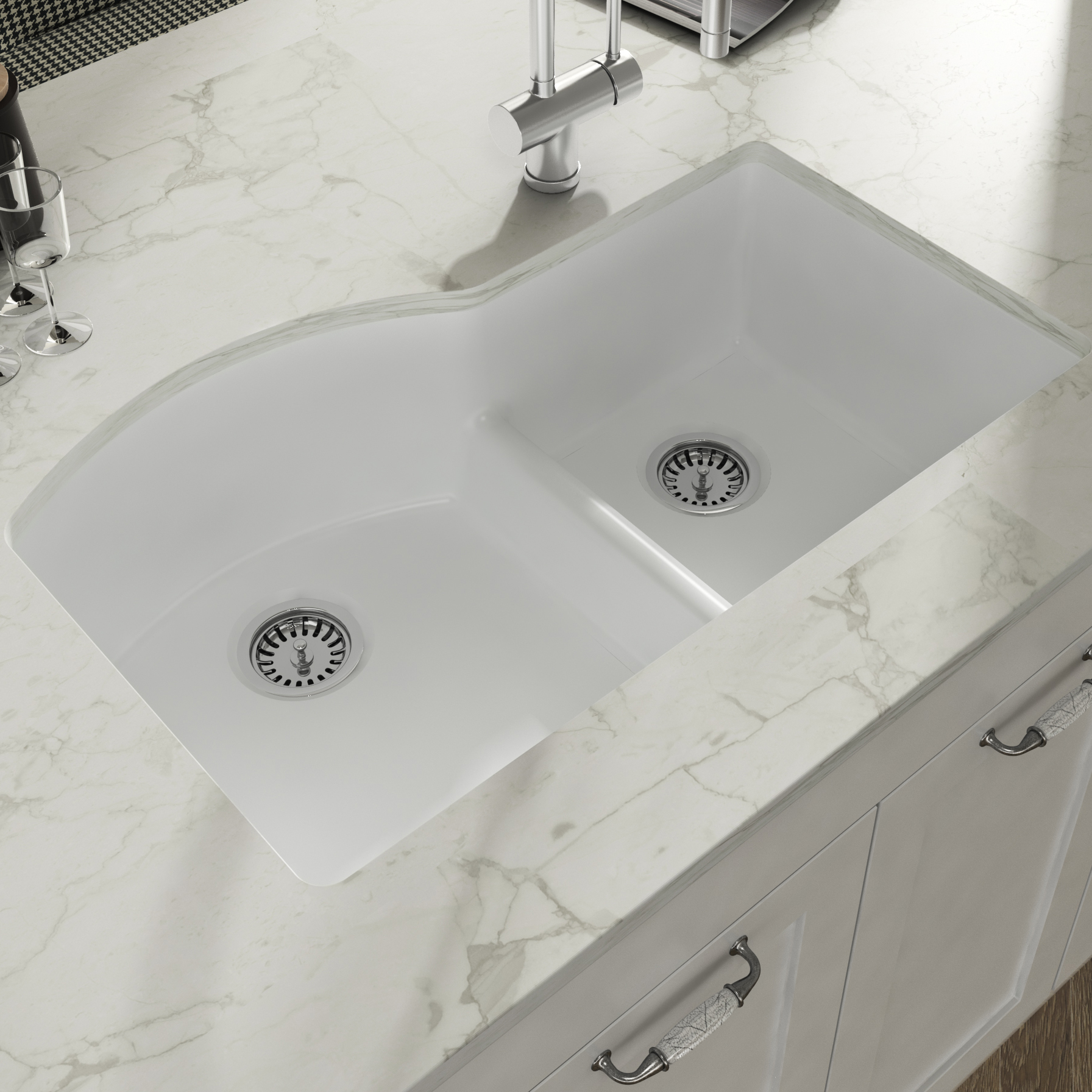

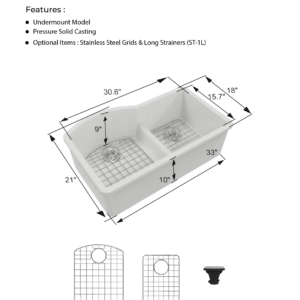

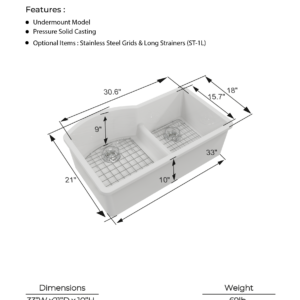

YU33DD
Double bowl, D-shape
33″ × 21″ × 10″ 17″ × 18½″ × 9″ and 13″ × 15½″ × 9″ 36″ $970

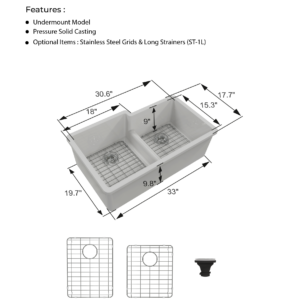

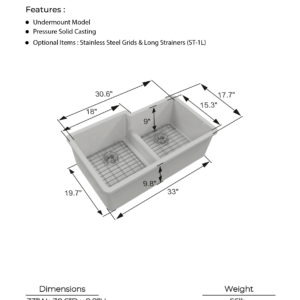

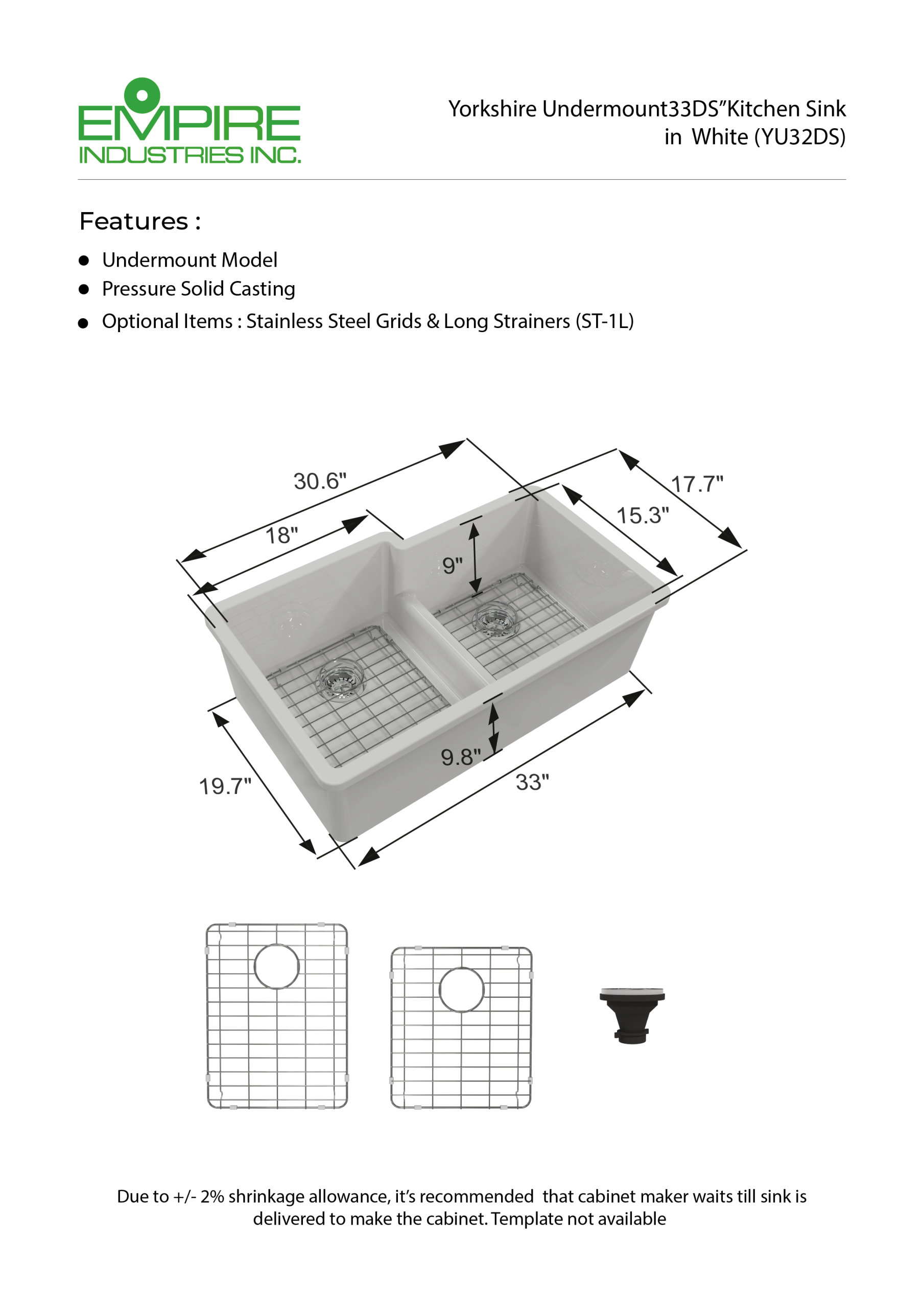

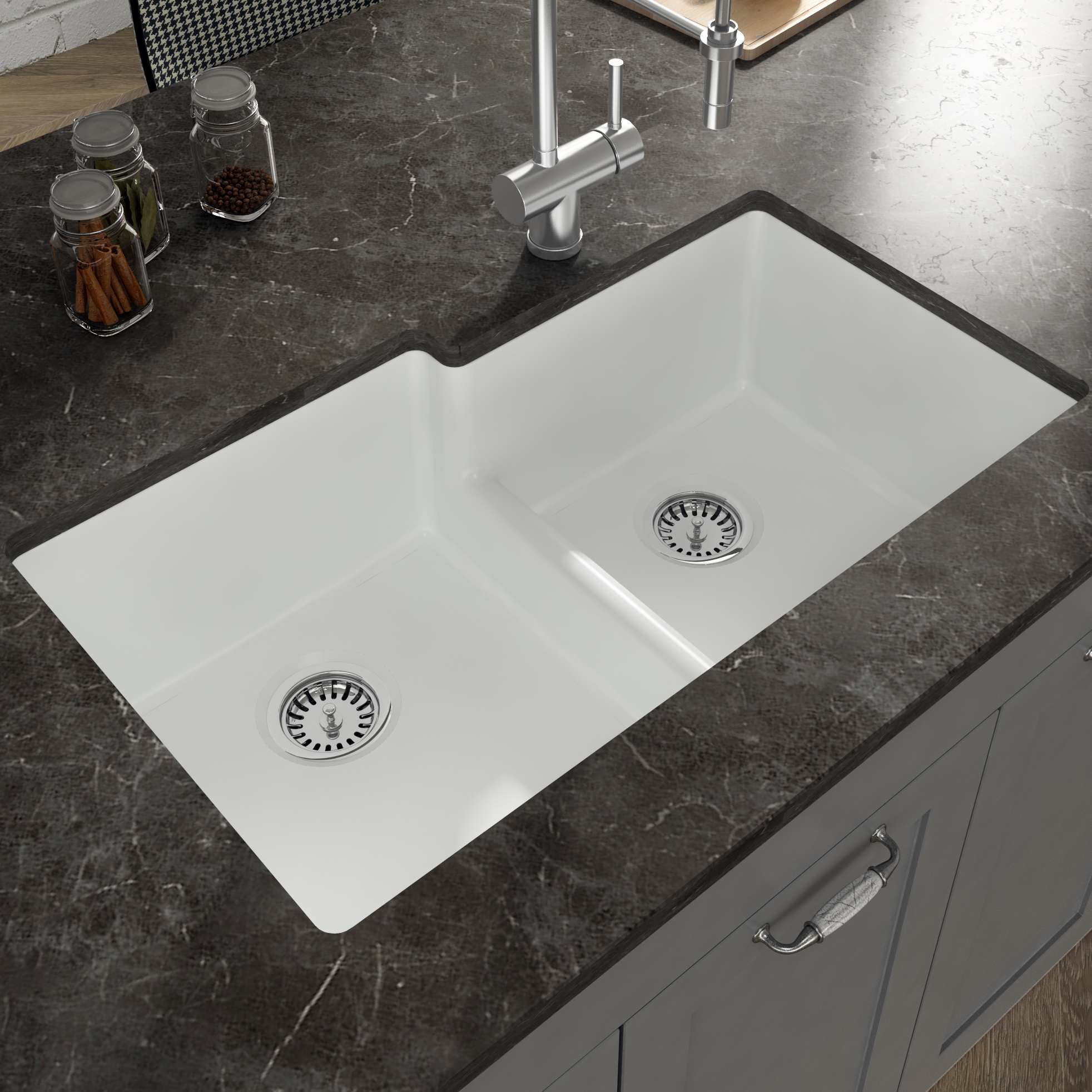

YU33DS
Double bowl, square
33″ × 19½″ × 10″ 16″ × 18″ × 9″ and 14″ × 16″ × 9″ 36″ $1,075

Min. cabinet is the overall sink width plus 3″, which leaves room for the solid wood bracing that supports the sink. Please check with your installer or fabricator before ordering.

Fireclay is fired in a kiln and can vary by ±2% in size. Build or adjust the cabinet only after the sink arrives, and have your fabricator template the sink on site.

Want a farmhouse front? See the Yorkshire fireclay farmhouse sink.

Matching grids

Polished stainless steel bottom grids protect the bowl from scratches. Sold separately; order one grid per bowl.

Yorkshire undermount sink Grid List price
YU17S (square bar sink) GYU17 $75
YU18R (round bar sink) GYU18 $95
YU24 (single bowl) GYU24 $115
YU27 (single bowl) GYU27 $125
YU31 (single bowl, left drain) GYU31 $130
YU32S (single bowl) GYU32 $130
YU33DD (double bowl, D-shape) GYU33DDL + GYU32DDS $95 + $60
YU33DS (double bowl, square) GYU33DSL + GYU32DSS $95 + $65

Strainer

Fireclay sinks have a thick bottom, so they need the ST-1L strainer.

Item Code List price and details
Basket strainer for thick-bottom sinks ST-1L $45 each. Polished stainless steel. Order one per bowl (two for a double bowl).

Dimension drawings (PDF)

Model Sink Drawing

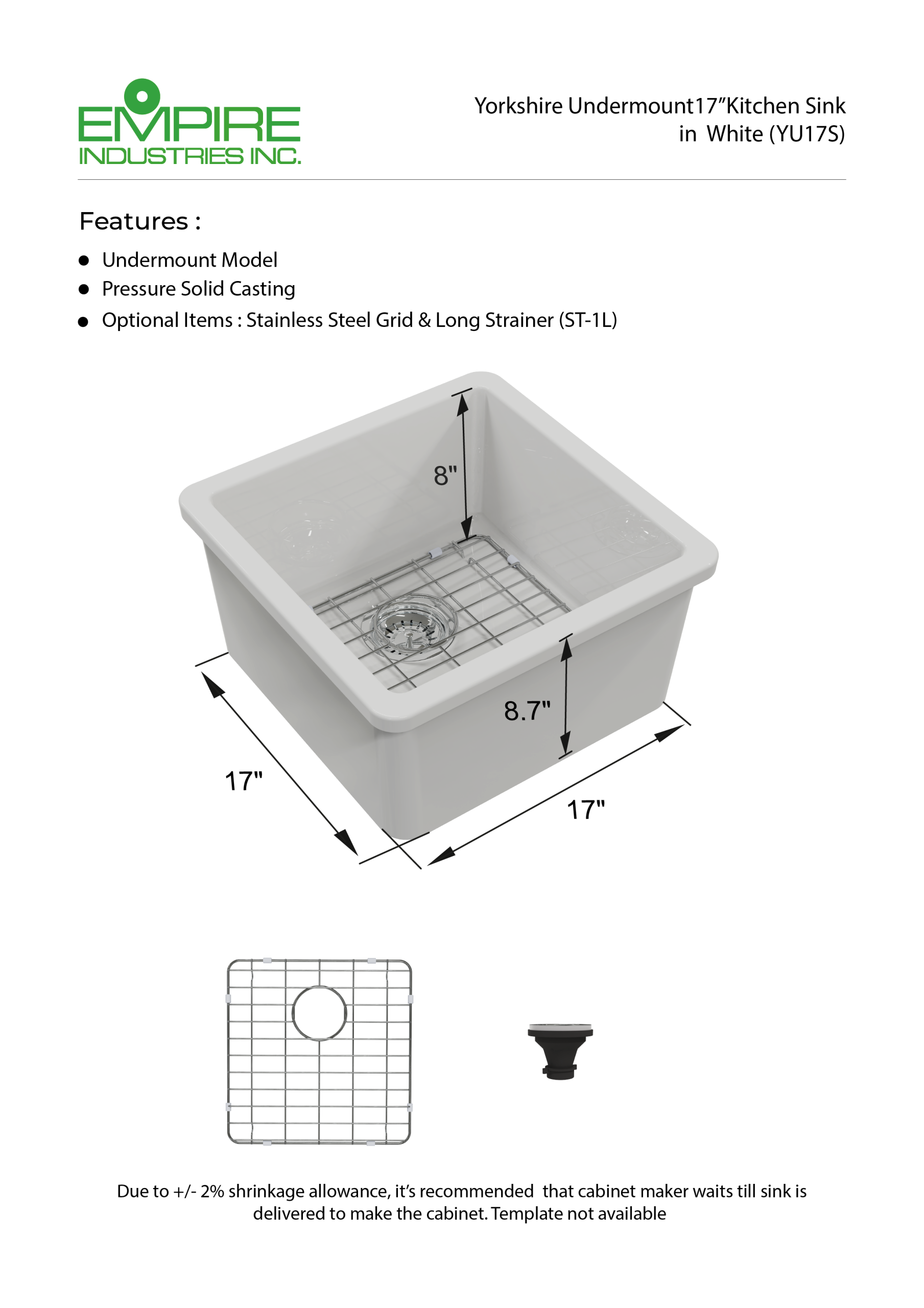

YU17S Square bar sink View PDF ↗

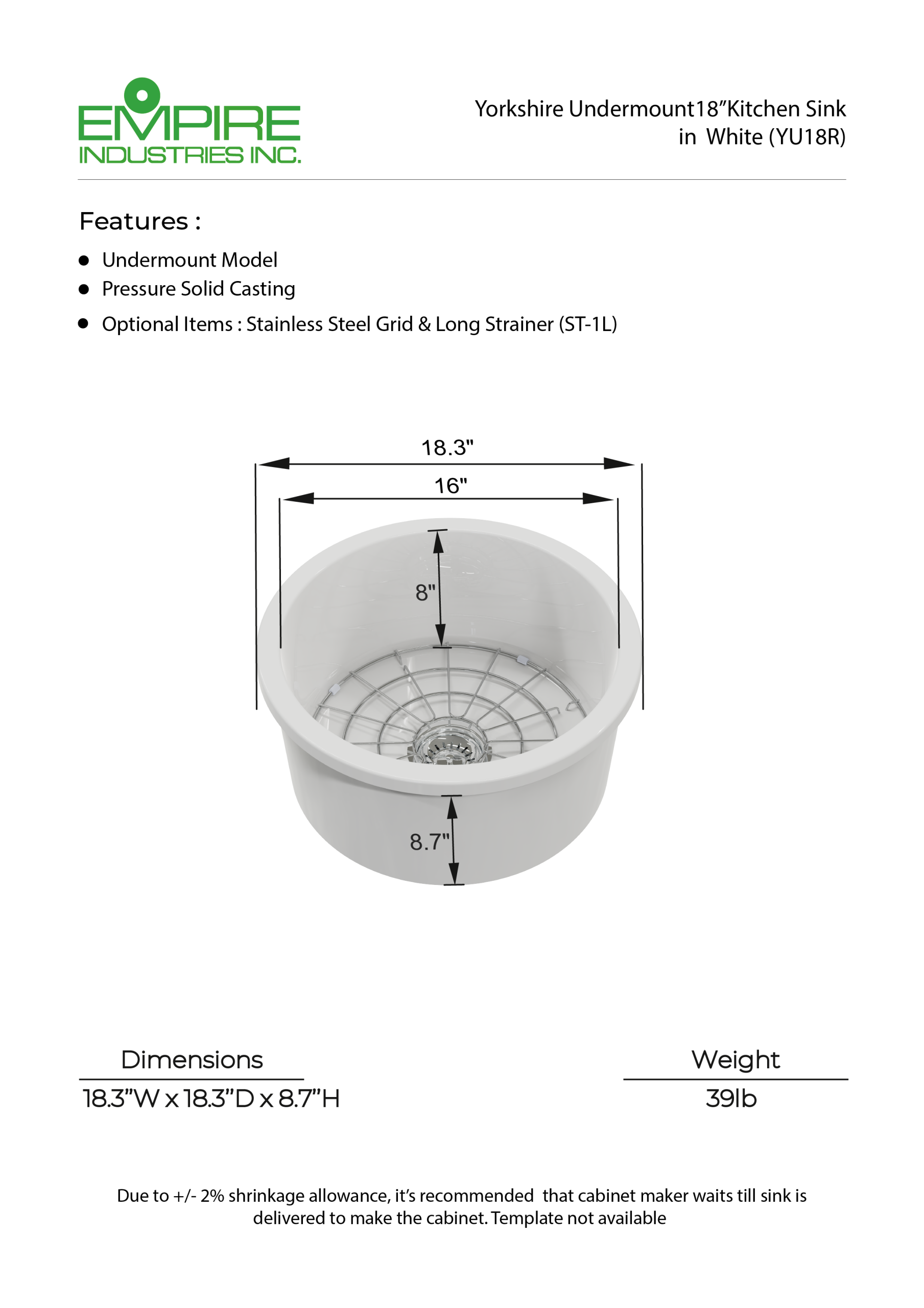

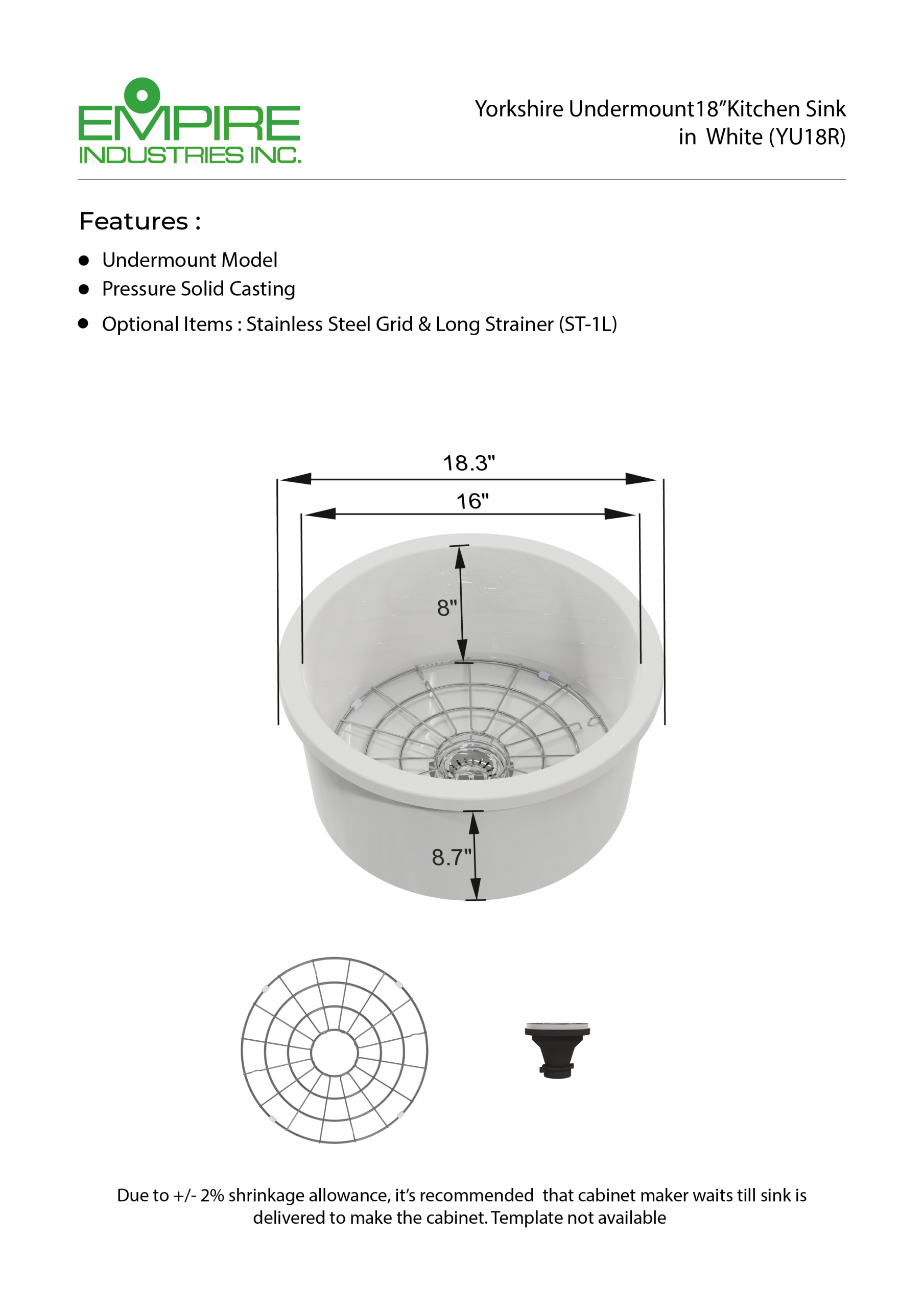

YU18R Round bar sink View PDF ↗
YU24 24″ single bowl View PDF ↗
YU27 27″ single bowl View PDF ↗

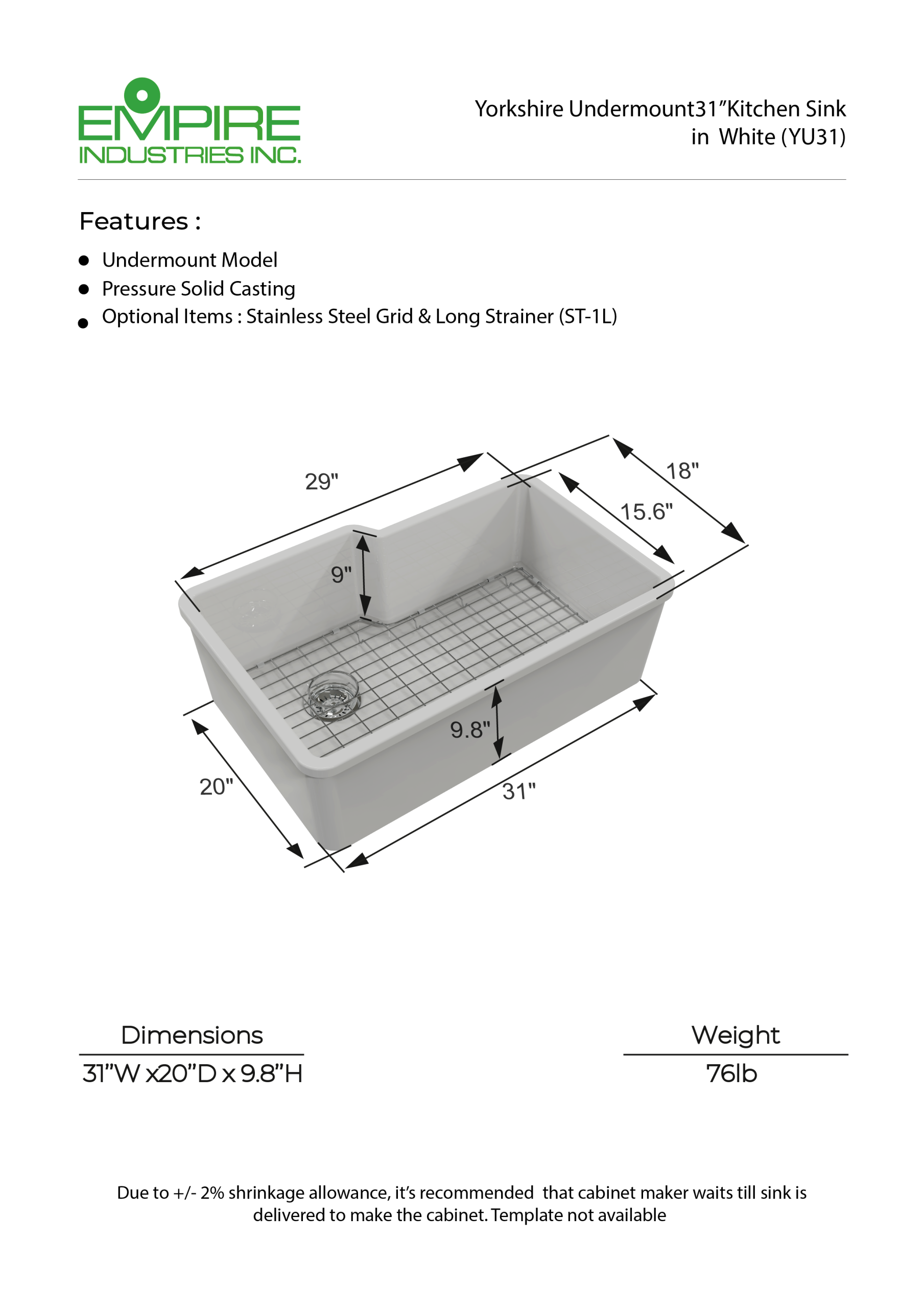

YU31 31″ single bowl, left drain View PDF ↗

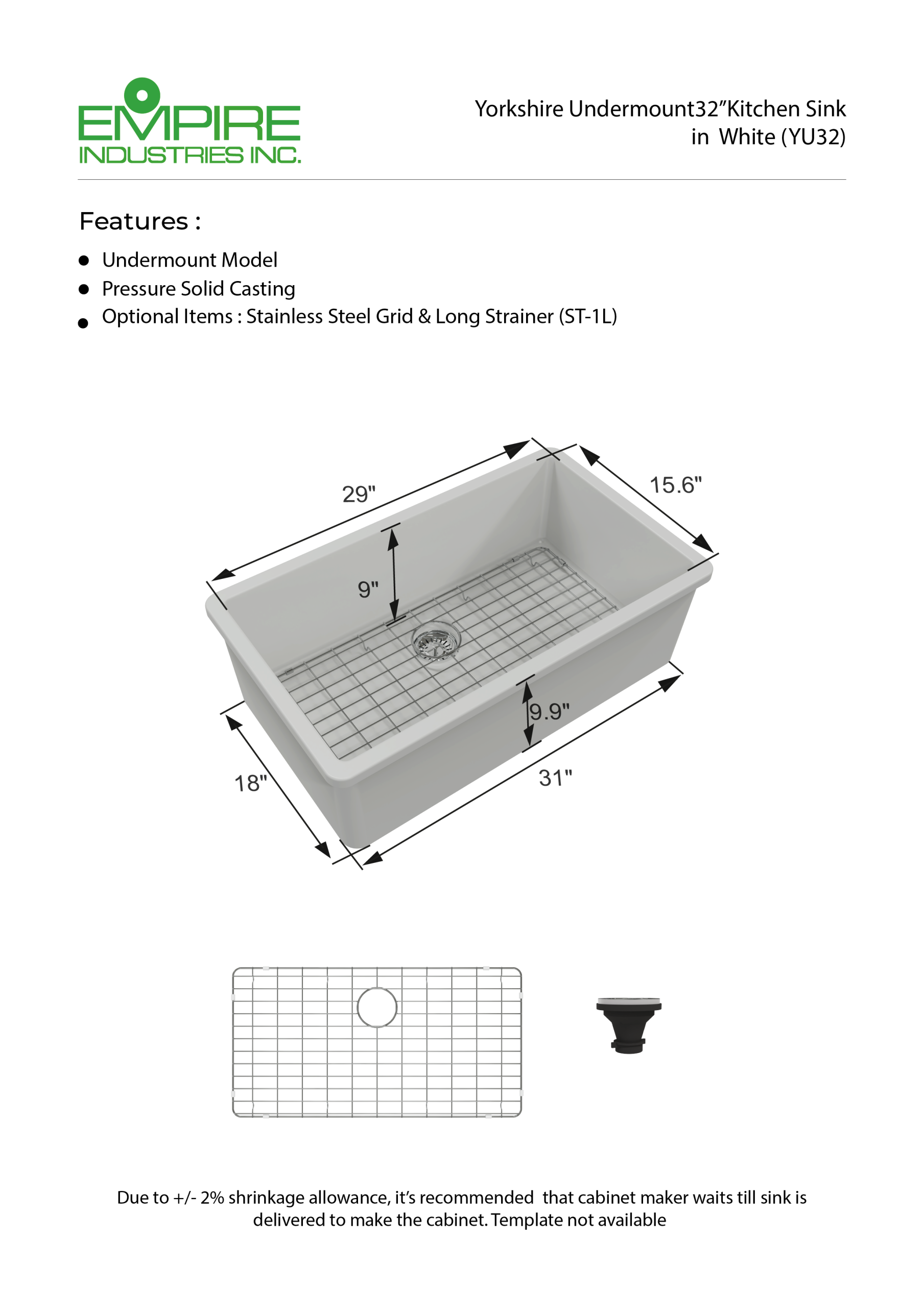

YU32S 32″ single bowl View PDF ↗

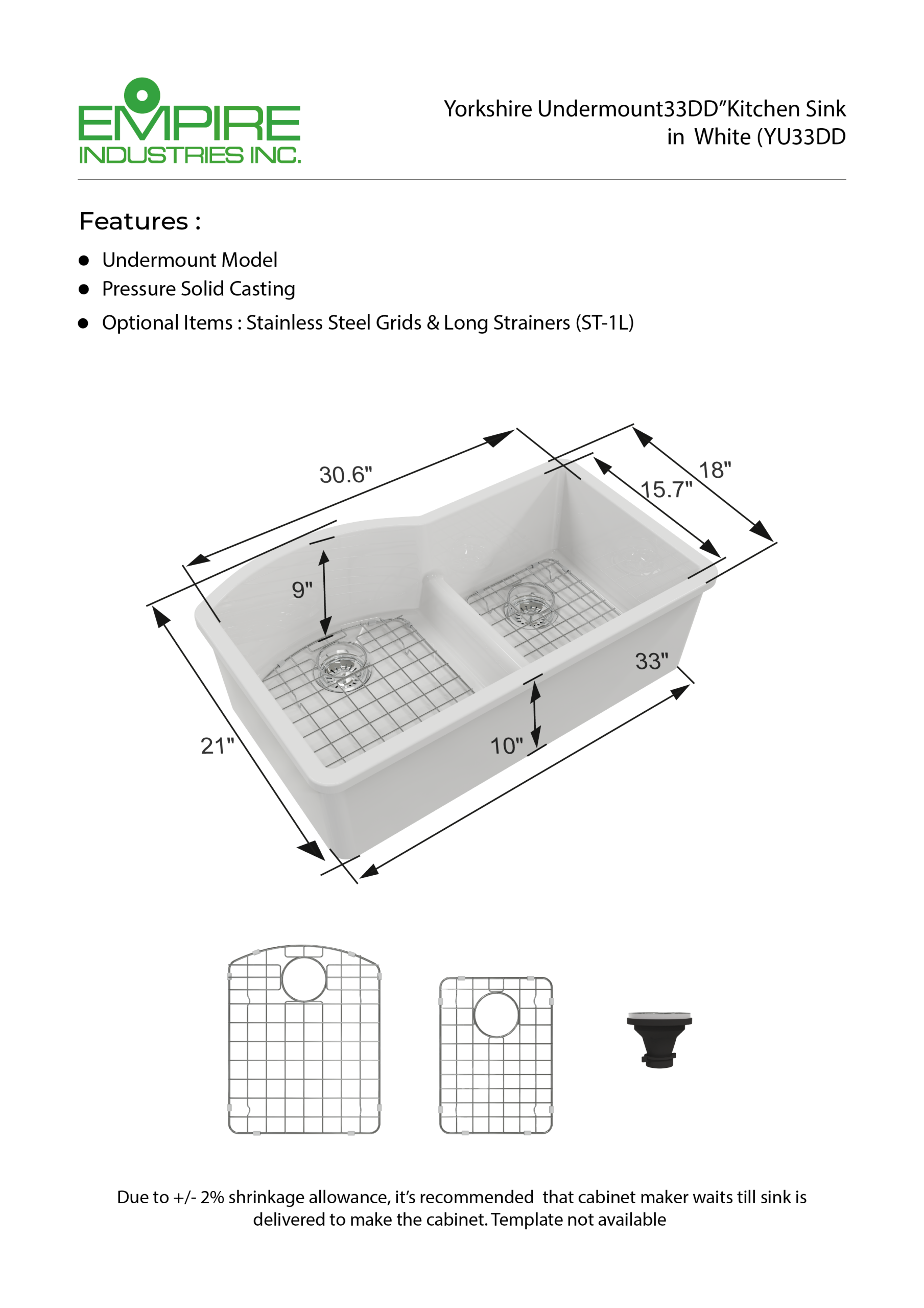

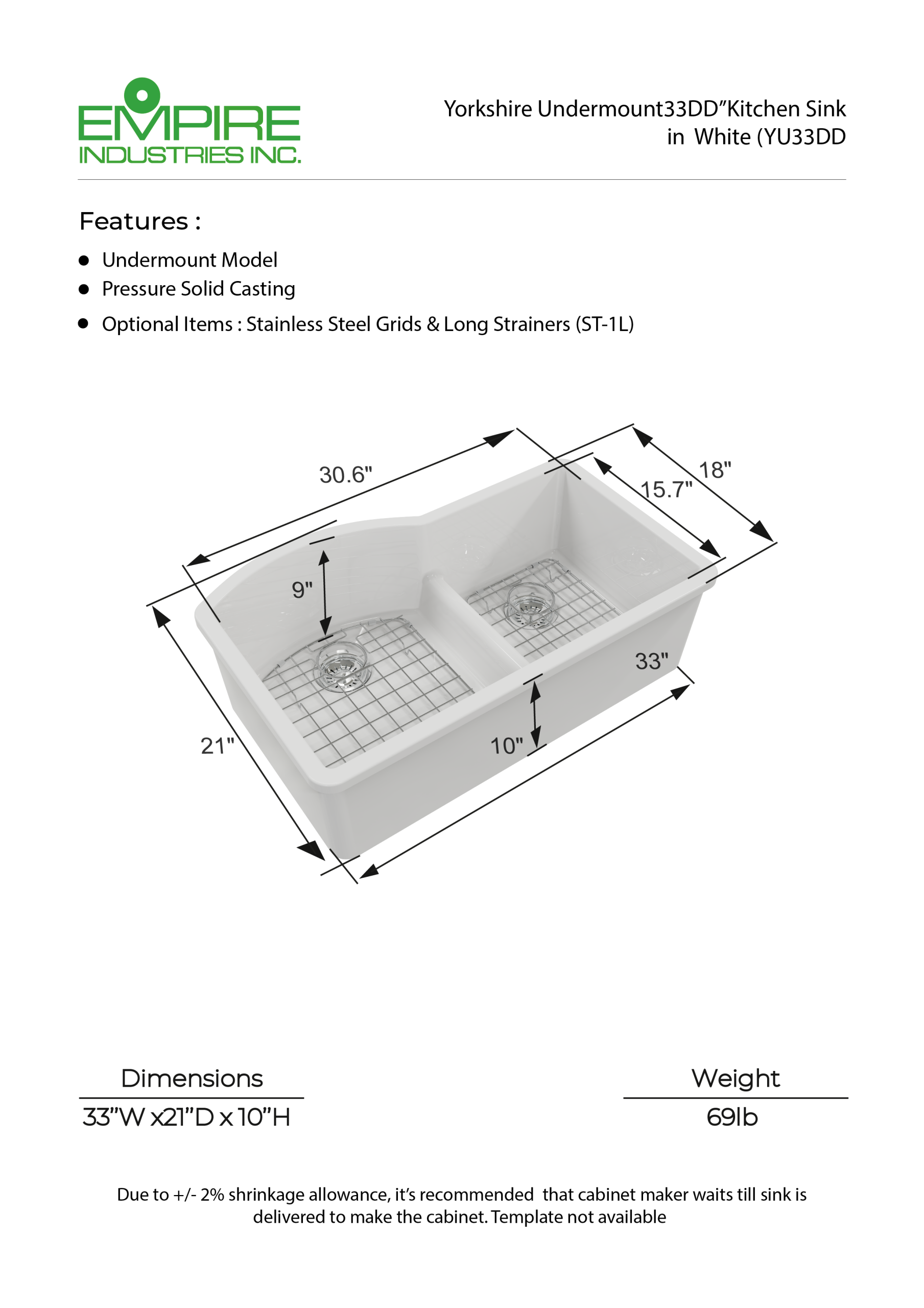

YU33DD 33″ double bowl, D-shape View PDF ↗

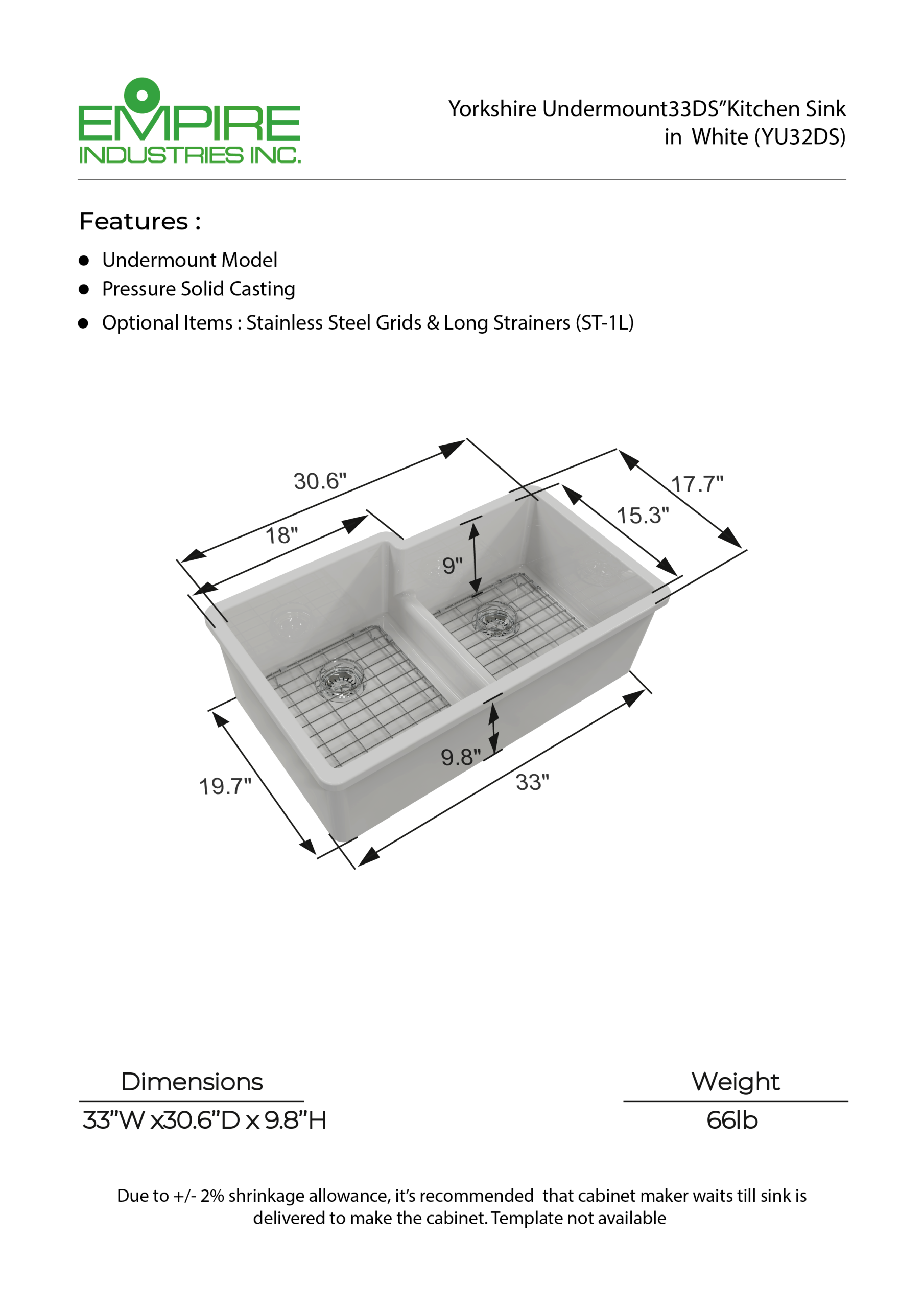

YU33DS 33″ double bowl, square View PDF ↗

Installation and care (PDF)

Guide Covers Document
Installation instructions Fireclay undermount sinks View PDF ↗
